HOW TO CUT YALE SUPERIOR & MAGNUM KEYS

The Yale Superior / Platinum and Magnum are unique high security keys that are growing in popularity and can be highly rewarding keys to cut. Whilst these keys are designed to be more complex than your average key, the good news is that they are fairly straight forward to cut once you have the correct machine, cutters and knowledge on how to cut them.

​

Most dimple keys on the market can be cut with a standard laser & dimple machine, however the Yale Superior / Platinum and Magnum keys cannot.  In fact, there are only a handful of machines that support these keys and here's why.....

​

These double sided keys have 2 rows of dimple cuts and 1 simple track cut - all of which have to be cut accurately in order for them to open the lock. The dimple cuts are unique from other dimple keys as they have to be cut at an angle of +/- 13.5 degrees. The top row is cut at -13.5 degrees whilst the middle row is cut at +13.5 degrees. Therefore a laser & dimple machine with synchronised tilting vices is needed.



Breakdown of equipment required to duplicate these keys:​

​

  • Laser & Dimple Machine with Synchronised Tilting Vices / Jaws

  • 95 Degree Cutter

  • 95 Degree Tracer

  • 1.5mm Laser Cutter

  • 1.5mm Laser Tracer

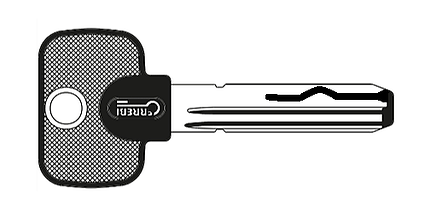

Yale Superior Magnum.png

Laser Track Cut

Dimple top row -13.5

Dimple middle row + 13.5

KEY CUTTING MACHINES FOR YALE SUPERIOR / PLATINUM & MAGNUM KEYS​

The following machines have synchronised tilting vices which allow you to set the angle required to duplicate these keys accurately.

YALE SUPERIOR / PLATINUM & MAGNUM CUTTERS & TRACERS​

The following cutters and tracers are required to cut these keys.

YALE SUPERIOR & MAGNUM KEY BLANK​

Need some help? Here at THM we are dedicated to helping you find both the machine and package that's right for you and your business. Feel free to get in touch - we'll be happy to help. View our Contact Details
